AXTAL時鐘有源晶振,AXE3225WT-50-4G-100.000MHz,HCMOS,3225mm,AXE3225WT系列,德國進口晶振,AXTAL小體積晶振,四腳有源晶振,OSC貼片晶振,HCMOS輸出晶振,有源貼片振蕩器,石英晶體振蕩器,尺寸3.2x2.5mm,頻率100MHZ,輸出HCMOS,高性能晶振,低相位晶振,低抖動晶振,無線路由器晶振,通信設備晶振,室外基站晶振.
AXTAL時鐘有源晶振,AXE3225WT-50-4G-100.000MHz,HCMOS,3225mm,AXE3225WT系列特點:
SMD SPXO，帶HCMOS輸出，3.2x2.5mm封裝OSC晶振
寬工作溫度范圍-55°C至+125°C
高性能低相位

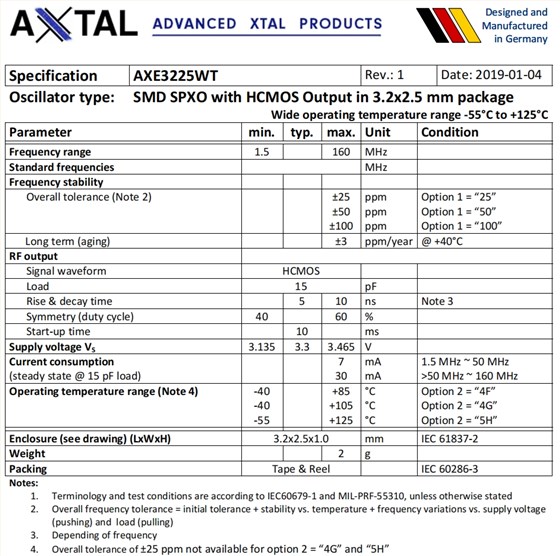

AXTAL時鐘有源晶振,AXE3225WT-50-4G-100.000MHz,HCMOS,3225mm,AXE3225WT系列 參數表
| Parameter | min. | typ. | max. | Unit | Condition | |||||||||||||||
| Frequency range | 1.5 | 160 | MHz | |||||||||||||||||
| Standard frequencies | MHz | |||||||||||||||||||
| Frequency stability | ||||||||||||||||||||
| Overall tolerance (Note 2) |
±25 ±50 ±100 |
ppm ppm ppm |
Option 1 = “25” Option 1 = “50” Option 1 = “100” |
|||||||||||||||||
| Long term (aging) | ±3 | ppm/year | @ +40°C | |||||||||||||||||
| RF output | ||||||||||||||||||||
| Signal waveform | HCMOS | |||||||||||||||||||
| Load | 15 | pF | ||||||||||||||||||
| Rise & decay time | 5 | 10 | ns | Note 3 | ||||||||||||||||
| Symmetry (duty cycle) | 40 | 60 | % | |||||||||||||||||
| Start-up time | 10 | ms | ||||||||||||||||||
| Supply voltage VS | 3.135 | 3.3 | 3.465 | V | ||||||||||||||||
|
Current consumption (steady state @ 15 pF load) |
7 30 |
mA mA |
1.5 MHz ~ 50 MHz >50 MHz ~ 160 MHz |
|||||||||||||||||
| Operating temperature range (Note 4) |
-40 -40 -55 |
+85 +105 +125 |
°C °C °C |
Option 2 = “4F” Option 2 = “4G” Option 2 = “5H” |
||||||||||||||||
| Enclosure (see drawing) (LxWxH) | 3.2x2.5x1.0 | mm | IEC 61837-2 | |||||||||||||||||
| Weight | 2 | g | ||||||||||||||||||
| Packing | Tape & Reel | IEC 60286-3 | ||||||||||||||||||

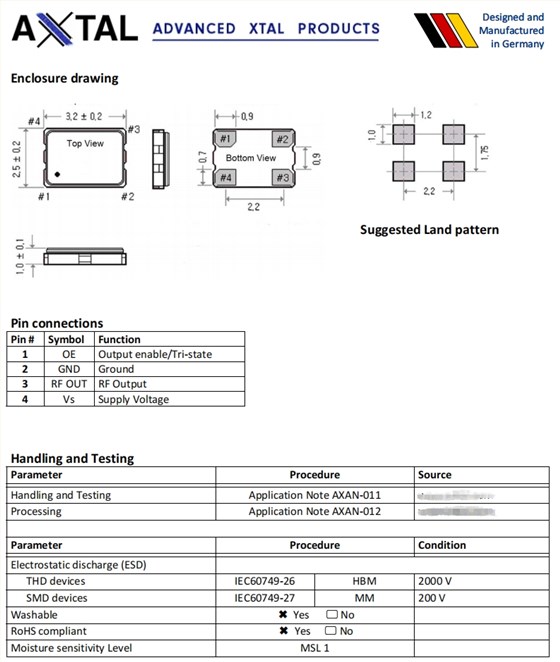

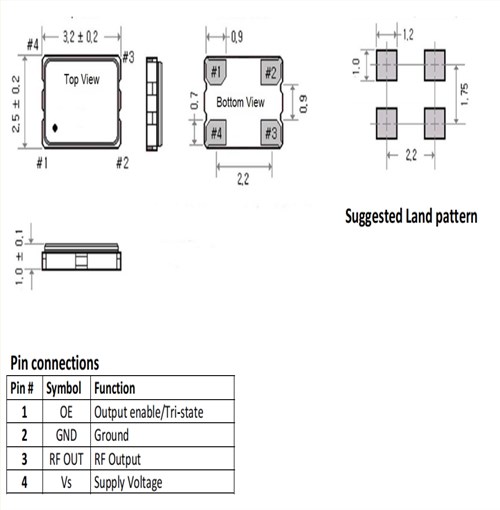

AXTAL時鐘有源晶振,AXE3225WT-50-4G-100.000MHz,HCMOS,3225mm,AXE3225WT系列 尺寸圖
