X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號

返回列表 來源：*** 查看手機網址
掃一掃!X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號掃一掃!
 瀏覽：- 發布日期：2022-09-16 17:23:32【大 中 小】
分享到：
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

Epson晶振推出的一款SPXO晶振系列，型號SG7050CAN是一款CMOS輸出石英晶體振蕩器、常規的7050尺寸擴展溫度有源貼片晶振，頻率范圍4MHz至72MHz，1.6V至3.63V的寬工作電源電壓和寬工作溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。 這些SPXO提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，四腳貼片晶振，并提供標準引腳排列。具有輸出頻率穩定和低功耗，低電源電壓，低抖動的特點，非常適用于物聯網、移動設備，USB、GPS系統、光纖通道、千兆以太網以及工控類IC時鐘芯片，為網絡設備提供穩定的時鐘信號。

X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號

愛普生晶振 型號 頻率 尺寸 輸出波 電源電壓 工作溫度
X1G004481000100 SG7050CAN 12.288000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000200 SG7050CAN 24.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000300 SG7050CAN 25.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000400 SG7050CAN 27.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000500 SG7050CAN 10.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000600 SG7050CAN 12.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000700 SG7050CAN 16.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000800 SG7050CAN 20.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481000900 SG7050CAN 32.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481001100 SG7050CAN 48.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481001200 SG7050CAN 50.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481001400 SG7050CAN 8.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481001500 SG7050CAN 40.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481001600 SG7050CAN 24.576000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481002200 SG7050CAN 24.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G004481002500 SG7050CAN 14.745600MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C

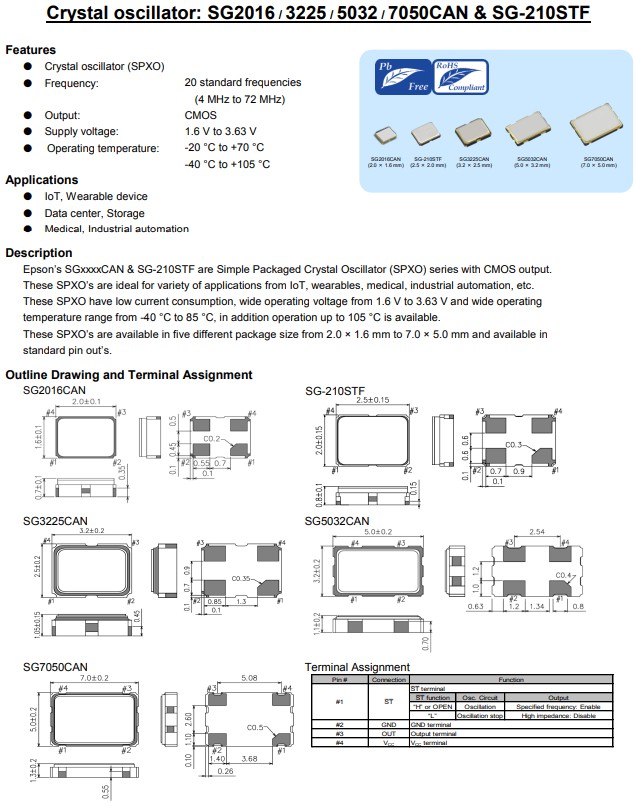

SG2016CAN，SG3225CAN,SG5032CAN,SG7050CAN,SG-210STF

X1G004481016000 SG7050CAN 50.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481017900 SG7050CAN 33.330000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481018300 SG7050CAN 72.000000MHz 7.00x5.00x1.30mm CMOS 1.710 to 3.630 V -40 to 85 °C
X1G004481022600 SG7050CAN 48.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G004481025200 SG7050CAN 4.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481025300 SG7050CAN 8.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481025400 SG7050CAN 10.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481025500 SG7050CAN 12.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G004481025600 SG7050CAN 12.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481025700 SG7050CAN 12.288000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -20 to 70 °C
X1G004481025800 SG7050CAN 12.288000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481025900 SG7050CAN 14.745600MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026000 SG7050CAN 16.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026100 SG7050CAN 20.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026200 SG7050CAN 24.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026300 SG7050CAN 24.576000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 85 °C
X1G004481026400 SG7050CAN 25.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026500 SG7050CAN 26.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026600 SG7050CAN 27.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481026700 SG7050CAN 32.000000MHz 7.00x5.00x1.30mm CMOS 1.620 to 3.630 V -40 to 105 °C
X1G004481000200有源晶振為網絡設備提供穩定的時鐘信號
SG7050CAN有源晶振具有輸出頻率穩定和低功耗的特點。符合工業級標準,在空載條件下輸出最大頻率時，元件的電流損耗僅為3.0mA。降低系統待機功耗的同時可有效延長電源裝置的使用壽命。通過控制引腳ST的高低電平還可實現待機模式的切換，其中待機模式下電流損耗可低至2.7μA，進一步降低了元件的待機功耗。此外，最大啟動時間3ms，保證了低功耗設計對設備喚醒速度的要求。
